17+ Years of Design Expertise
Rich experience in custom high-pressure die casting molds for aluminum and zinc alloys.
Powered by 17+ years of engineering excellence, our mold design team turns complex concepts into high-precision, production-ready reality. By integrating DFM reports, digital Moldflow simulations, and machining-focused layouts, we optimize gating, cooling, and structural efficiency—helping you prevent defects and cut material costs by 10–15% before steel is even cut.
Rich experience in custom high-pressure die casting molds for aluminum and zinc alloys.
Design capabilities ranging from single-cavity to multi-cavity (up to 12 cavities) for maximum production efficiency.
Rapid analysis of 3D drawings (STEP/IGS/DWG) to deliver a comprehensive DFM report and competitive quote within 24 hours.
Utilize digital Moldflow tools to optimize gating systems and cooling channels, minimizing porosity and internal defects before tooling.
Provide actionable engineering suggestions to refine component structures, saving clients 10–15% in material costs.
Strategically allocate machining stock during the mold design phase to ensure flawless critical bores, sealing faces, and threads.
Exceptional castings start with flawless tooling. Utilizing premium steel alloys (H13, 8407, Dievar) and standard mold bases (LKM, HASCO, DME), our high-precision CNC, EDM, and Wire-Cutting operations achieve extraordinary tolerances down to $\pm0.01\text{mm}$. Through rigorous assembly and T1 trial fine-tuning, we guarantee maximum mold longevity and repeat accuracy.
State-of-the-art manufacturing leveraging High-Speed CNC milling, precision EDM mirror sinking, and slow-wire cutting to ensure strict dimensional fidelity for all core/cavity inserts.
Premium steel selection including H13, 8407, and Uddeholm Dievar (heat-treated to 48–52 HRC) integrated with certified standard bases from LKM, HASCO, and DME to ensure up to 100,000+ shot mold longevity.
Rigorous hand-fitting and benchwork assembly followed by comprehensive T1 sampling and dimensional inspection, continuously tuning mold parameters until outputs match exact blueprints.

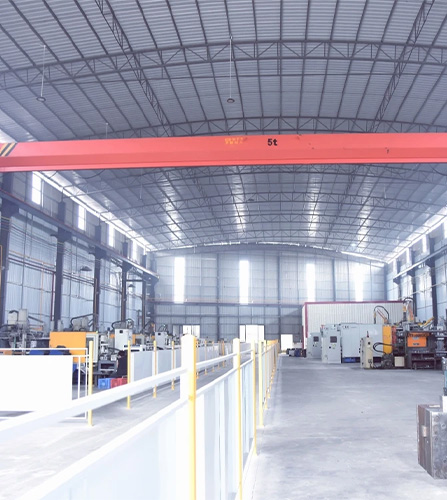

Modern production floor housing 20 cold-chamber aluminum custom die casting machines ranging from 280T to 900T and 3 hot-chamber zinc alloy machines from 88T to 200T.

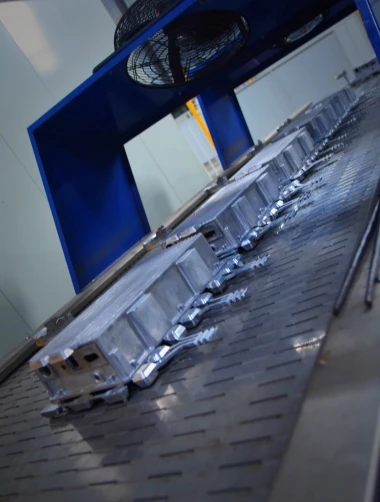

Fully automated casting cells integrated with robotic metal ladling, multi-axis die spraying, casting extraction, and automated trimming presses to ensure consistent cycle times and zero human damage during demolding.
Closed-loop real-time control of injection velocity (up to $8\text{ m/s}$ high-speed phase), stroke position, and intensification pressure to minimize turbulent air entrapment, shrinkage, and internal porosity.
We bridge the gap between "as-cast" components and mission-critical assemblies. Featuring 3, 4, and 5-axis CNC machining centers, our precision turning, milling, boring, and tapping operations operate at micron-level precision ($\pm0.005\text{mm}$). Seamless in-house integration ensures perfect sealing faces, tight thread tolerances, and optimized workflow without external delay.
<

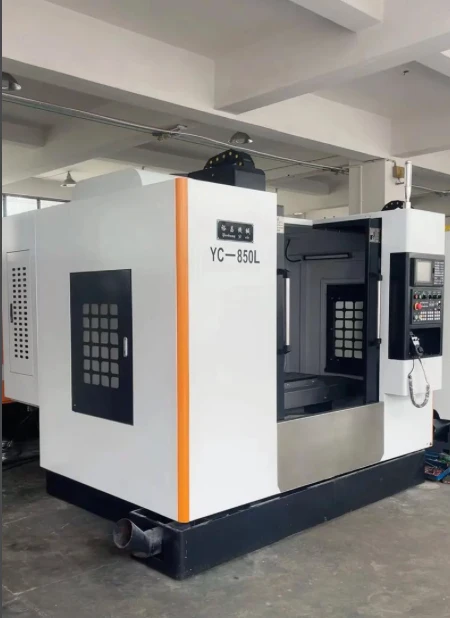

Modern fleet of multi-axis CNC milling and high-speed turning centers providing micron-level tolerances for tight geometry features, true position, and fine surface profiles.
Facing & Skimming: Creating leak-proof, mirror-flat sealing interfaces.
Boring & Precision Drilling: Achieving high-concentricity bore diameters and hole patterns.
Tapping & Threading: Cutting clean, high-strength internal/external threads without burrs.
Pocket & Slot Milling: Milling intricate structural features impractical to form directly during casting.
Eliminates third-party machining vendors, reducing shipping transit times, administrative overhead, and logistics risk while optimizing overall part quality and accountability.
